Gasless Transactions on Base using a Paymaster

Base transaction fees are typically less than a penny, but the concept of gas can still be confusing for new users and lead to poor user experience when users don’t have gas funds in their wallet. You can abstract this away and improve your UX by using the Base Paymaster. The Paymaster allows you to:

• Batch multi-step transactions
• Create custom gasless experiences
• Sponsor up to $15k monthly on mainnet (unlimited on testnet)

​

Objectives

1. Configure security measures to ensure safe and reliable transactions.
2. Manage and allocate resources for sponsored transactions.
3. Subsidize transaction fees for users, enhancing the user experience by making transactions free.
4. Set up and manage sponsored transactions on various schedules, including weekly, monthly, and daily cadences.

​

Prerequisites

This tutorial assumes you have:

1. A Coinbase Cloud Developer Platform Account
   If not, sign up on the CDP site. Once you have your account, you can manage projects and utilize tools like the Paymaster.

2. Familiarity with Smart Accounts and ERC 4337
   Smart Accounts are the backbone of advanced transaction patterns (e.g., bundling, sponsorship). If you’re new to ERC 4337, check out external resources like the official EIP-4337 explainer before starting.

3. Foundry
   Foundry is a development environment, testing framework, and smart contract toolkit for Ethereum. You’ll need it installed locally for generating key pairs and interacting with smart contracts.

​

Set Up a Base Paymaster & Bundler

In this section, you will configure a Paymaster to sponsor payments on behalf of a specific smart contract for a specified amount.

1. Navigate to the Coinbase Developer Platform.
2. Create or select your project from the upper left corner of the screen.
3. Click on the Paymaster tool from the left navigation.
4. Go to the Configuration tab and copy the RPC URL to your clipboard — you’ll need this shortly in your code.

​

Screenshots

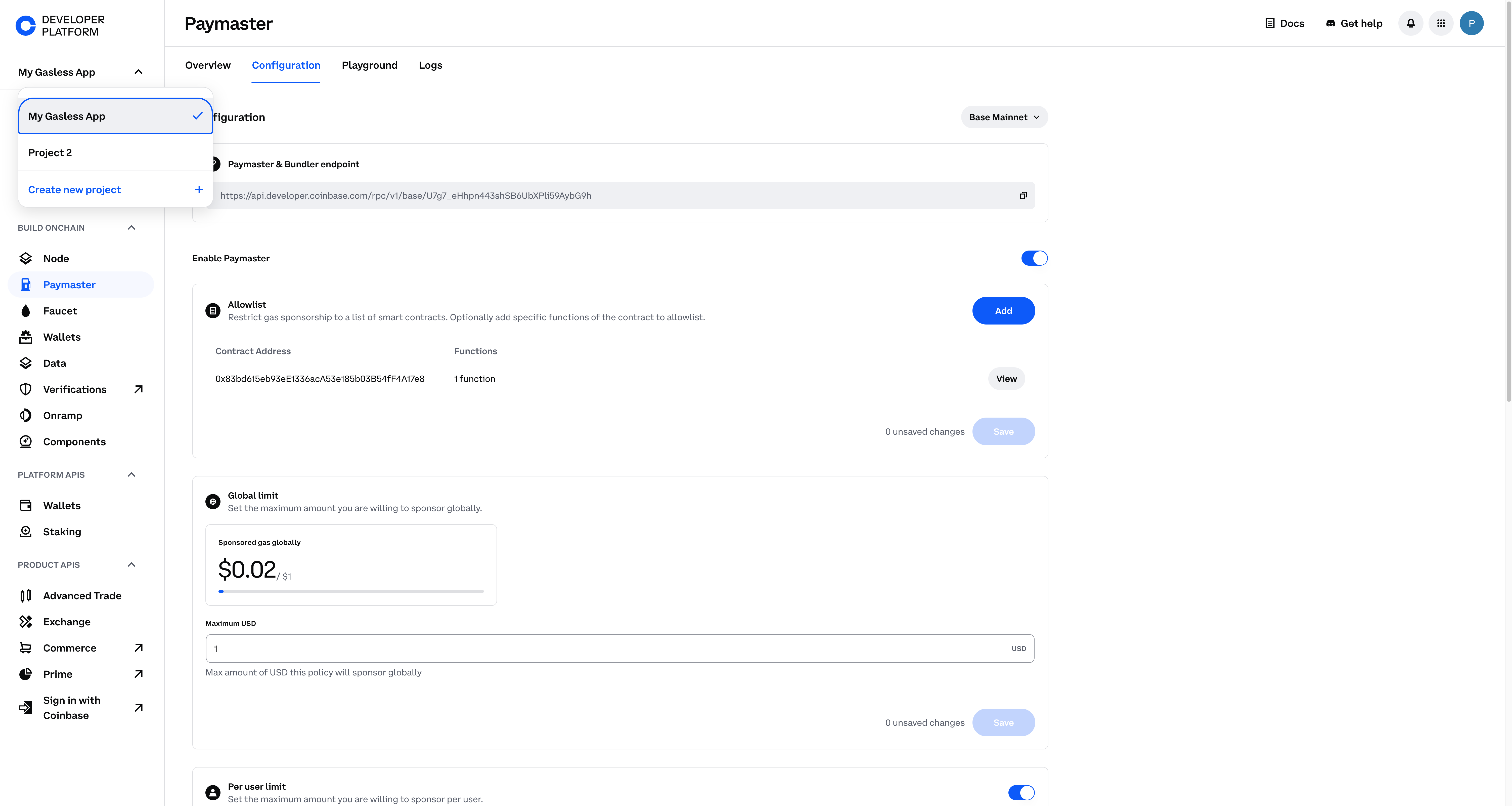

• Selecting your project

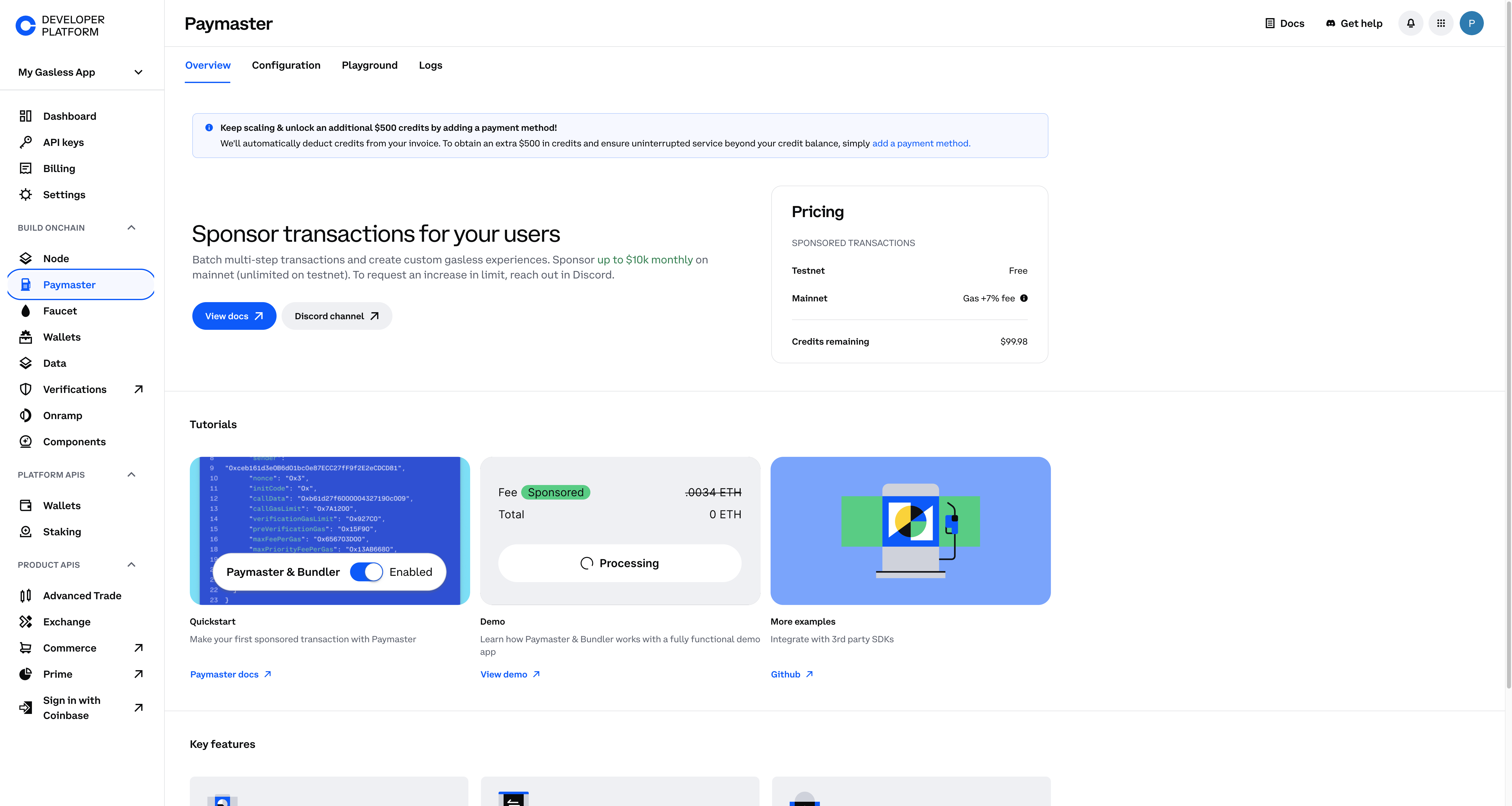

• Navigating to the Paymaster tool

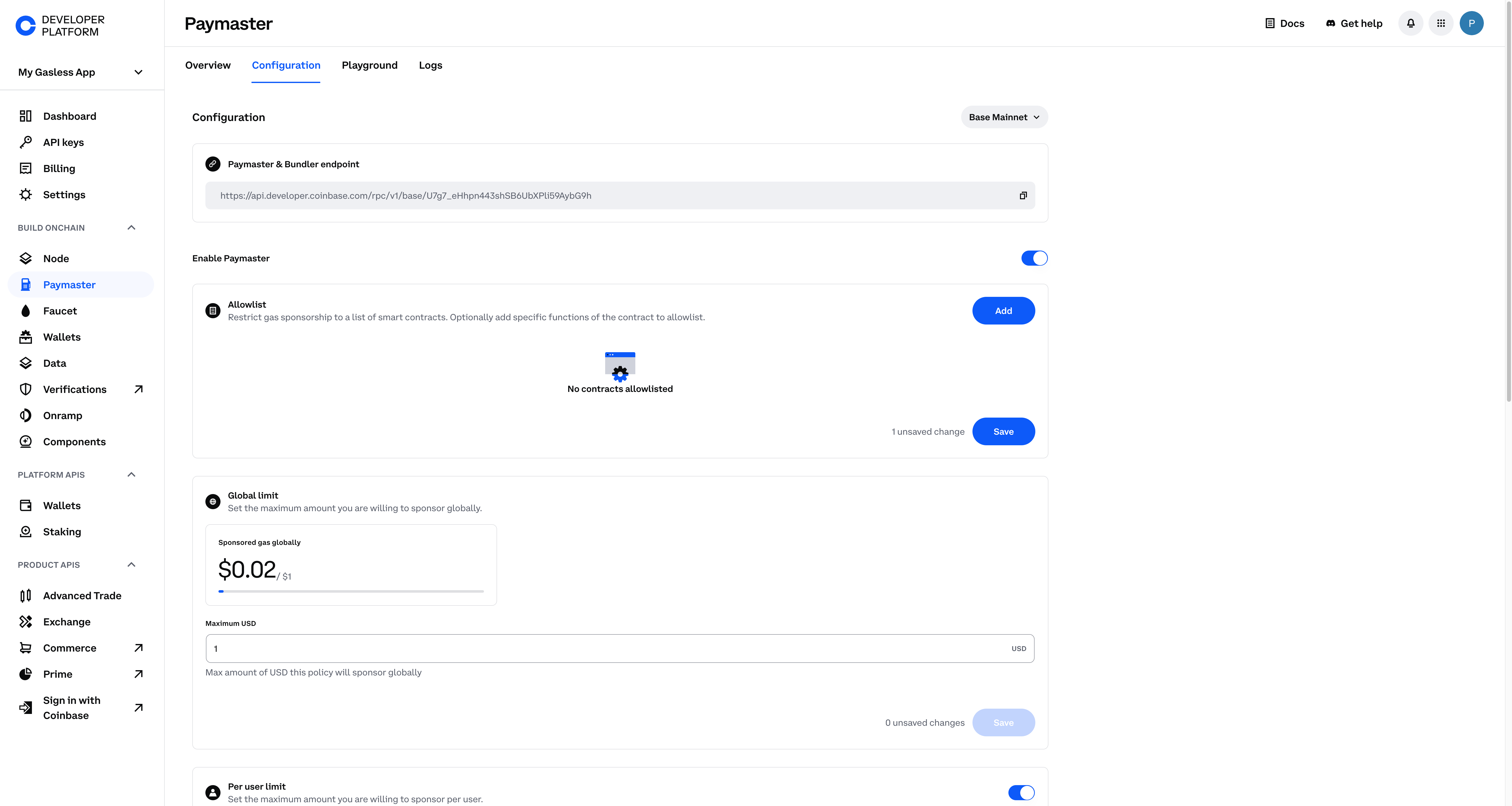

• Configuration screen

​

Allowlist a Sponsorable Contract

1. From the Configuration page, ensure Base Mainnet (or Base Sepolia if you’re testing) is selected.
2. Enable your paymaster by clicking the toggle button.
3. Click Add to add an allowlisted contract.
4. For this example, add 0x83bd615eb93eE1336acA53e185b03B54fF4A17e8, and add the function mintTo(address).

​

Global & Per User Limits

Scroll down to the Per User Limit section. You can set:

• Dollar amount limit or number of UserOperations per user
• Limit cycles that reset daily, weekly, or monthly

For example, you might set:

• max USD to $0.05
• max UserOperation to 1

This means each user can only have $0.05 in sponsored gas and 1 user operation before the cycle resets.

Next, set the Global Limit. For example, set this to $0.07 so that once the entire paymaster has sponsored $0.07 worth of gas (across all users), no more sponsorship occurs unless you raise the limit.

​

Test Your Paymaster Policy

Now let’s verify that these policies work. We’ll:

1. Create two local key pairs (or use private keys you own).
2. Generate two Smart Accounts.
3. Attempt to sponsor multiple transactions to see your policy in action.

​

Installing Foundry

1. Ensure you have Rust installed
   Copy

   Ask AI

   curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh


2. Install Foundry
   Copy

   Ask AI

   curl -L https://foundry.paradigm.xyz | bash
   foundryup


3. Verify it works
   Copy

   Ask AI

   cast --help


   If you see Foundry usage info, you’re good to go!

​

Create Your Project & Generate Key Pairs

1. Make a new folder and install dependencies, viem and permissionless:
   Copy

   Ask AI

   mkdir sponsored_transactions
   cd sponsored_transactions
   npm init es6
   npm install permissionless
   npm install viem
   touch index.js


2. Generate two key pairs with Foundry:
   Copy

   Ask AI

   cast wallet new
   cast wallet new


   You’ll see something like:
   Copy

   Ask AI

   Successfully created new keypair.
   Address: 0xD440D746...
   Private key: 0x01c9720c1dfa3c9...


   Store these private keys somewhere safe

​

Project Structure With Environment Variables

Create a .env file in the sponsored_transactions directory. In the .env, you’ll add the rpcURL for your paymaster and the private keys for your accounts:

PAYMASTER_RPC_URL=https://api.developer.coinbase.com/rpc/v1/base/<SPECIAL-KEY>
PRIVATE_KEY_1=0x01c9720c1dfa3c9...
PRIVATE_KEY_2=0xbcd6fbc1dfa3c9...

​

Example index.js

Below is a full example of how you might structure index.js.

// --- index.js ---
// @noErrors

// 1. Import modules and environment variables
import 'dotenv/config';
import { http, createPublicClient, encodeFunctionData } from 'viem';
import { base } from 'viem/chains';
import { createSmartAccountClient } from 'permissionless';
import { privateKeyToSimpleSmartAccount } from 'permissionless/accounts';
import { createPimlicoPaymasterClient } from 'permissionless/clients/pimlico';

// 2. Retrieve secrets from .env
// Highlight: environment variables for paymaster, private keys
const rpcUrl = process.env.PAYMASTER_RPC_URL; // highlight
const firstPrivateKey = process.env.PRIVATE_KEY_1; // highlight
const secondPrivateKey = process.env.PRIVATE_KEY_2; // highlight

// 3. Declare Base addresses (entrypoint & factory)
const baseEntryPoint = '0x5FF137D4b0FDCD49DcA30c7CF57E578a026d2789';
const baseFactoryAddress = '0x15Ba39375ee2Ab563E8873C8390be6f2E2F50232';

// 4. Create a public client for Base
const publicClient = createPublicClient({
  chain: base,
  transport: http(rpcUrl),
});

// 5. Setup Paymaster client
const cloudPaymaster = createPimlicoPaymasterClient({
  chain: base,
  transport: http(rpcUrl),
  entryPoint: baseEntryPoint,
});

// 6. Create Smart Accounts from the private keys
async function initSmartAccounts() {
  const simpleAccount = await privateKeyToSimpleSmartAccount(publicClient, {
    privateKey: firstPrivateKey,
    factoryAddress: baseFactoryAddress,
    entryPoint: baseEntryPoint,
  });

  const simpleAccount2 = await privateKeyToSimpleSmartAccount(publicClient, {
    privateKey: secondPrivateKey,
    factoryAddress: baseFactoryAddress,
    entryPoint: baseEntryPoint,
  });

  // 7. Create SmartAccountClient for each
  const smartAccountClient = createSmartAccountClient({
    account: simpleAccount,
    chain: base,
    bundlerTransport: http(rpcUrl),
    middleware: {
      sponsorUserOperation: cloudPaymaster.sponsorUserOperation,
    },
  });

  const smartAccountClient2 = createSmartAccountClient({
    account: simpleAccount2,
    chain: base,
    bundlerTransport: http(rpcUrl),
    middleware: {
      sponsorUserOperation: cloudPaymaster.sponsorUserOperation,
    },
  });

  return { smartAccountClient, smartAccountClient2 };
}

// 8. ABI for the NFT contract
const nftAbi = [
  // ...
  // truncated for brevity
];

// 9. Example function to send a transaction from a given SmartAccountClient
async function sendTransaction(client, recipientAddress) {
  try {
    // encode the "mintTo" function call
    const callData = encodeFunctionData({
      abi: nftAbi,
      functionName: 'mintTo',
      args: [recipientAddress], // highlight: specify who gets the minted NFT
    });

    const txHash = await client.sendTransaction({
      account: client.account,
      to: '0x83bd615eb93eE1336acA53e185b03B54fF4A17e8', // address of the NFT contract
      data: callData,
      value: 0n,
    });

    console.log(`✅ Transaction successfully sponsored for ${client.account.address}`);
    console.log(`🔍 View on BaseScan: https://basescan.org/tx/${txHash}`);
  } catch (error) {
    console.error('Transaction failed:', error);
  }
}

// 10. Main flow: init accounts, send transactions
(async () => {
  const { smartAccountClient, smartAccountClient2 } = await initSmartAccounts();

  // Send a transaction from the first account
  await sendTransaction(smartAccountClient, smartAccountClient.account.address);

  // Send a transaction from the second account
  // For variety, let’s also mint to the second account's own address
  await sendTransaction(smartAccountClient2, smartAccountClient2.account.address);
})();

Now that the code is implemented, lets run it: Run this via node index.js from your project root.

node index.js

You should see a “Transaction successfully sponsored” output.

To confirm that your spend policies are correctly in place, try running the script again. If your Paymaster settings are strict (e.g., limit 1 transaction per user), the second time you run the script, you may get a “request denied” error, indicating the policy is working.

​

Hitting Policy Limits & Troubleshooting

1. Per-User Limit
   If you see an error like:

   Copy

   Ask AI

   {
     "code": -32001,
     "message": "request denied - rejected due to maximum per address transaction count reached"
   }


   That means you’ve hit your UserOperation limit for a single account. Return to the Coinbase Developer Platform UI to adjust the policy.

2. Global Limit
   If you repeatedly run transactions and eventually see:

   Copy

   Ask AI

   {
     "code": -32001,
     "message": "request denied - rejected due to max global usd Spend Permission reached"
   }


   You’ve hit the global limit of sponsored gas. Increase it in the CDP dashboard and wait a few minutes for changes to take effect.

​

Verifying Token Ownership (Optional)

Want to confirm the token actually minted? You can read the NFT’s balanceOf function:

import { readContract } from 'viem'; // highlight

// example function
async function checkNftBalance(publicClient, contractAddress, abi, ownerAddress) {
  const balance = await publicClient.readContract({
    address: contractAddress,
    abi,
    functionName: 'balanceOf',
    args: [ownerAddress],
  });
  console.log(`NFT balance of ${ownerAddress} is now: ${balance}`);
}

​

Conclusion

In this tutorial, you:

• Set up and configured a Base Paymaster on the Coinbase Developer Platform.
• Allowlisted a contract and specific function (mintTo) for sponsorship.
• Established per-user and global sponsorship limits to control costs.
• Demonstrated the sponsorship flow with Smart Accounts using permissionless, viem, and Foundry-generated private keys.

This approach can greatly improve your dApp’s user experience by removing gas friction. For more complex sponsorship schemes (like daily or weekly cycles), simply tweak your per-user and global limit settings in the Coinbase Developer Platform.

Next Steps

• Use a proxy service for better endpoint security.
• Deploy your own contracts and allowlist them.
• Experiment with bundling multiple calls into a single sponsored transaction.

​

References

• list of factory addresses
• Discord
• CDP site
• Coinbase Developer Platform
• UI
• proxy service
• Paymaster Tool
• Foundry Book installation guide
• simple NFT contract

Happy Building on Base!
